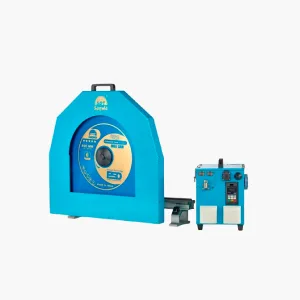

SDT-WS-32HF Wall Saw Machine
The SDT-WS-32HF is an exceptionally robust wall saw engineered for cutting reinforced concrete, brick, and other building materials up to 730 mm thick. Its water-cooled electric motor boasts an unparalleled power-to-weight ratio, ensuring outstanding cutting performance. Moreover, the SDT-WS-32HF seamlessly transforms into a high-caliber wire saw or a versatile core drilling machine, greatly enhancing its effectiveness on the job site.
Specifications
| Feature | 360° rotating swivel arm |
|---|---|
| Feature | Double seals for longer service life |
| Feature | Easy maintenance |
| Feature | Fast motor fixing on spindle |
| Feature | Flush cutting optional |
| Feature | High quality gears |
| Feature | High quality water cooled high frequency motor |
| Feature | Option for single phase or three phase |
| Feature | Overload protection |
| Feature | Quick setup time |
| Feature | Tracks and brackets made with aluminum alloy |
Product Details
| Particulars | Details |
|---|---|
| Max. saw blade Ø | 1600 mm |
| Max. cutting depth | 730 mm |
| Starter blade diameter, max | 900 mm |
| Max spindle torque | 250 NM |
| Power | 32 kW 63 A |
| Voltage | 380-480 V or 230 V |
| Frequency | 50 / 60 Hz |
| Saw head including HF motor weight | 56 Kg’s |
| Control box weight | 27 Kg’s |
Related products
Awaiting product image
SDT-FS-800E Floor Saw Machine
View product

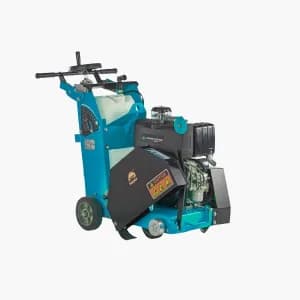

SDT-FS-450D Floor Saw Machine
