Concrete Controlled Demolition Diamond Core Bit

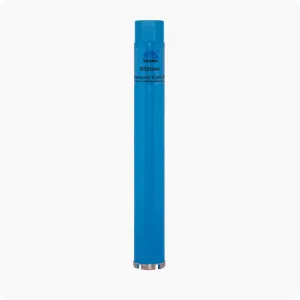

CCD Diamond core bit

  • Usage - For Reinforced Concrete, Masonry
  • High production, fast drill
  • extended life with economic purpose
  • Wet drilling
  • Core Bit available from 14mm to 500mm

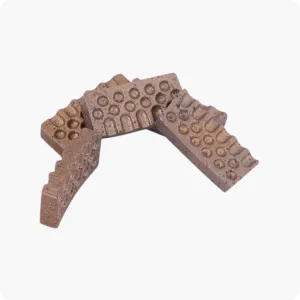

  • Special design segments for faster drilling

Diamond Core Bit


Item Diameter Connection Segment thickness Segment Height
CD140 14mm 1-1/4” UNC/ ½” BSP (M) 3.0/3.5mm 10mm
CD160 16mm 1-1/4” UNC/ ½” BSP (M) 3.0/3.5mm 10mm
CD190 19mm 1-1/4” UNC/ ½” BSP (M) 3.0/3.5mm 10mm
CD220 22mm 1-1/4” UNC/ ½” BSP (M) 3.0/3.5mm 10mm
CD250 25mm 1-1/4” UNC/ ½” BSP (M) 3.0/3.5mm 10mm
CD280 28mm 1-1/4” UNC/ ½” BSP (M) 3.0/3.5mm 10mm
CD320 32mm 1-1/4” UNC/ ½” BSP (M) 3.0/3.5mm 10mm
CD370 37mm 1-1/4” UNC or Hilti 3.0/3.5mm 10mm
CD400 42mm 1-1/4” UNC or Hilti 3.5/4.0mm 10mm
CD500 52mm 1-1/4” UNC or Hilti 3.5/4.0mm 10mm
CD600 65mm 1-1/4” UNC or Hilti 3.5/4.0mm 10mm
CD700 72mm 1-1/4” UNC or Hilti 3.5/4.0mm 10mm
CD750 77mm 1-1/4” UNC or Hilti 3.5/4.0mm 10mm
CD800 82mm 1-1/4” UNC or Hilti 3.5/4.0mm 10mm
CD900 92mm 1-1/4” UNC or Hilti 3.5/4.0mm 10mm
CD1000 102mm 1-1/4” UNC or Hilti 4.0mm 10mm
CD1100 112mm 1-1/4” UNC or Hilti 4.0mm 10mm
CD1220 122mm 1-1/4” UNC or Hilti 4.0mm 10mm
CD1250 127mm 1-1/4” UNC or Hilti 4.0mm 10mm
CD130 132mm 1-1/4” UNC or Hilti 4.0mm 10mm
CD1500 152mm 1-1/4” UNC or Hilti 4.0mm 10mm
CD1600 162mm 1-1/4” UNC or Hilti 4.0mm 10mm
CD1800 180mm 1-1/4” UNC or Hilti 4.0mm 10mm
CD2000 202mm 1-1/4” UNC or Hilti 4.0mm 10mm
CD2500 252mm 1-1/4” UNC or Hilti 4.5mm 10mm
CD3000 302mm 1-1/4” UNC or Hilti 4.5mm 10mm
CD3500 352mm 1-1/4” UNC or Hilti 4.5mm 10mm
CD5000 502mm 1-1/4” UNC or Hilti 5mm 10mm
